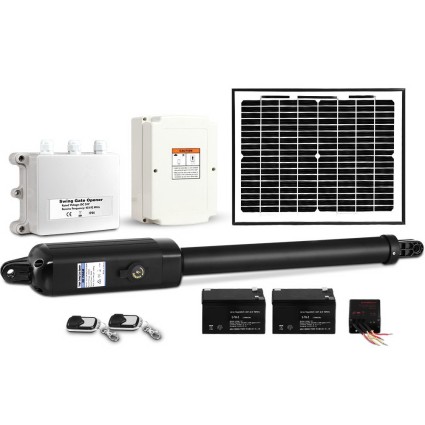

The LockMaster Single Swing Gate Opener is a solar-powered 24V system designed for effortless control of single swing gates up to 500kg and 5.5m. It features gentle start stop action for smooth operation, obstruction stop and reverse safety, emergency release for power outages and programmable auto close. Ideal for residential and light commercial gates where low power consumption and reliable solar operation are required.

Features

• 500kg maximum gate weight and up to 5.5m gate length
• 24V low voltage motor with aluminium swing arm and 80W motor power
• Includes 10W polycrystalline solar panel and 2 x 12V 7Ah batteries
• Stop and reverse on obstruction plus emergency release key
• Two remotes with 30m range programmable auto close and waterproof control box

Specifications

• Power source Solar with 2 x 12V 7Ah batteries
• Solar panel 24V 10W polycrystalline
• Motor voltage 24V DC motor power 80W
• Actuator travel 385mm actuator speed 20mm/s
• Operating temperature -22°C to +55°C protection class IP44

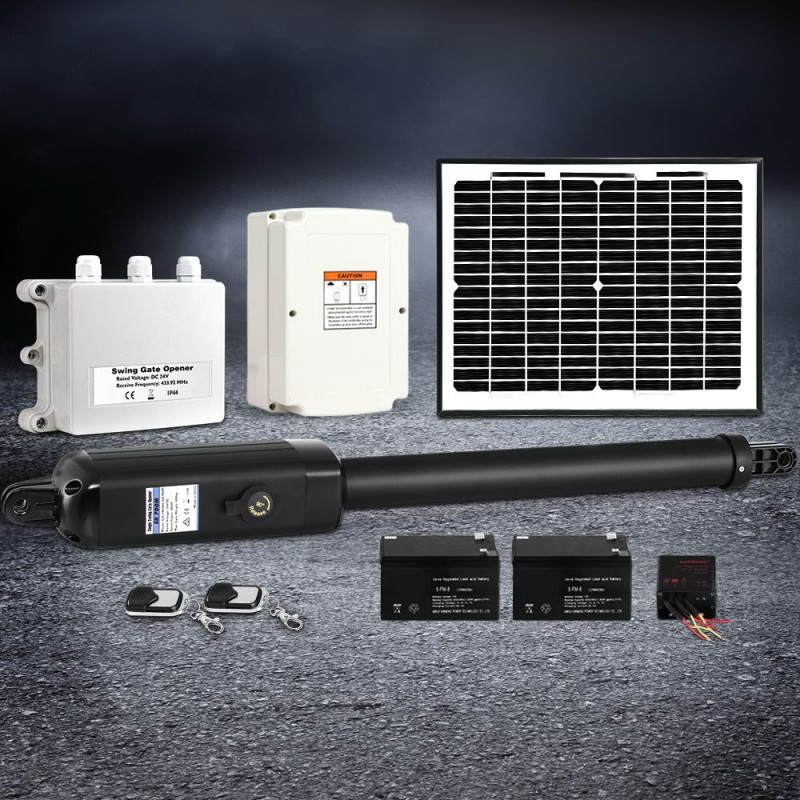

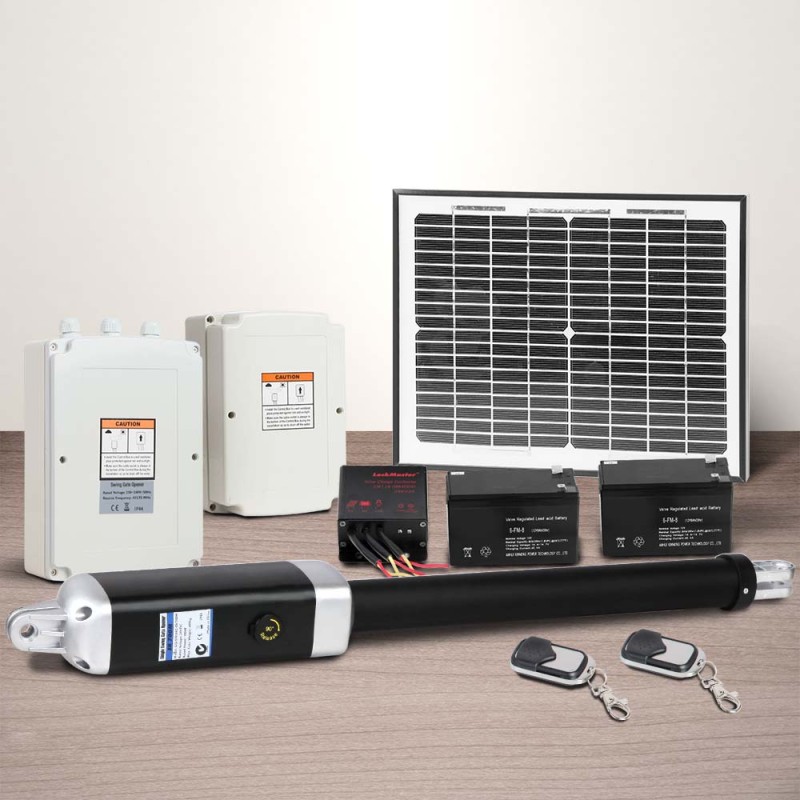

Package Contents

• Gate opener arm
• Control box and installation accessories
• 10W solar panel
• Remote controls 2 and user manual
• Installation hardware included

Product Notes

• 12 month warranty
• Assembly required: Yes
• 1-year warranty
• The actual colours may vary due to your monitor colour depth and make.
