Introducing the LockMaster Single Swing Gate Opener, a 20W full solar-powered solution for seamless, eco-friendly gate control. It supports gates up to 300kg and 5m long, ensuring smooth operation with gentle start/stop features. Safety is prioritised with its obstruction detection and emergency release key. The programmable auto-close feature and included remote controls offer unmatched convenience. Designed for durability, it suits various gate styles and comes with a 1-year warranty.

Features

• Solar-powered gate opener
• Handles gates up to 300kg and 5m long
• Gentle start and stop features
• Automatically stops or reverses on obstruction

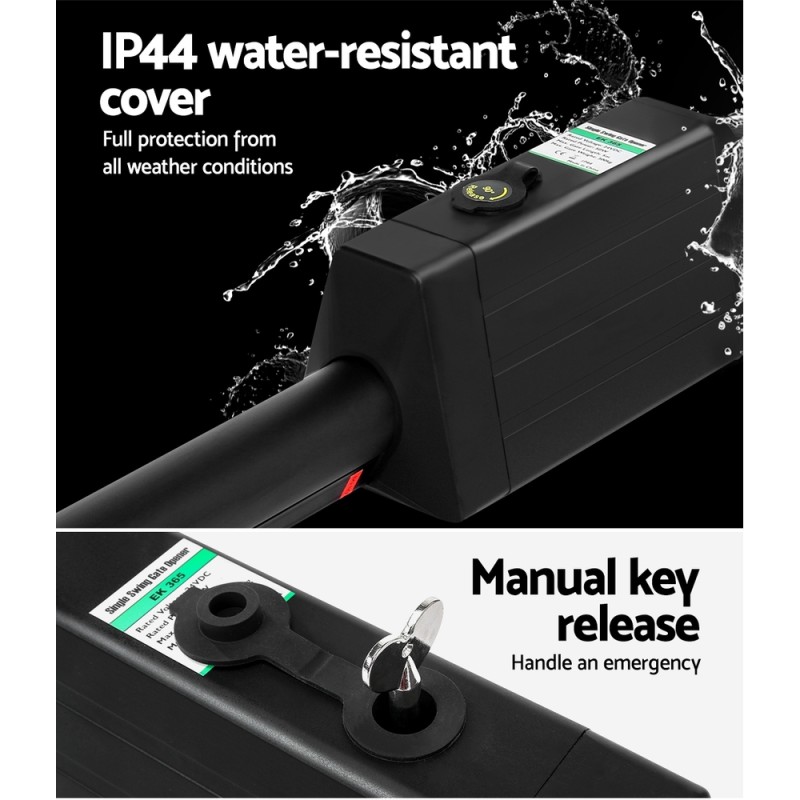

• Emergency release key for power failures
• Programmable auto-close (0-99s)
• Weather and dust resistant control box

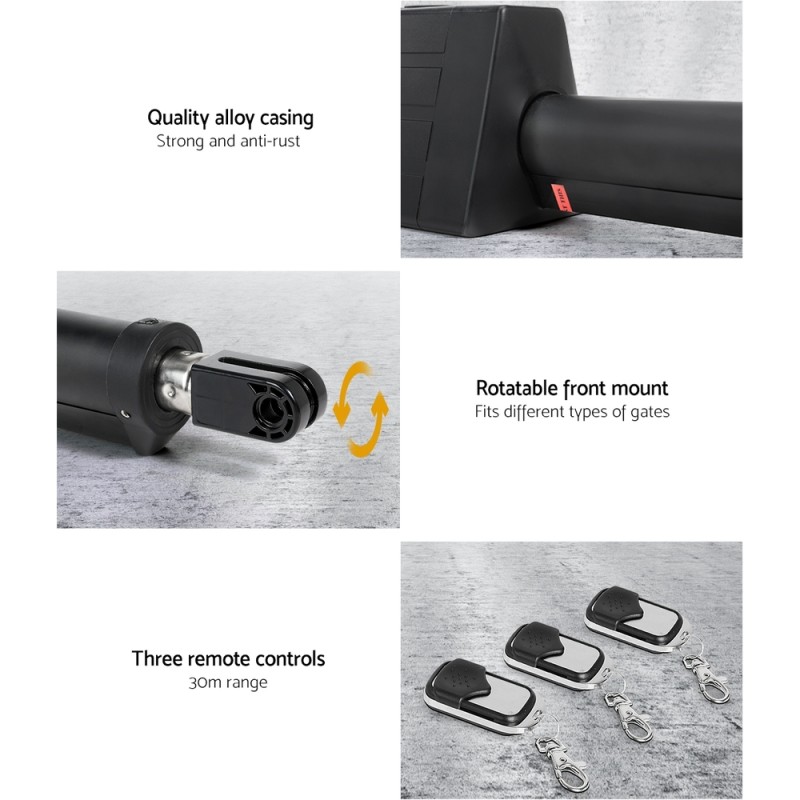

• Includes 3 programmable remote controls
• Compatible with steel, wood, vinyl gates

Specifications

• Motor voltage: 24V DC
• Motor power: 50W

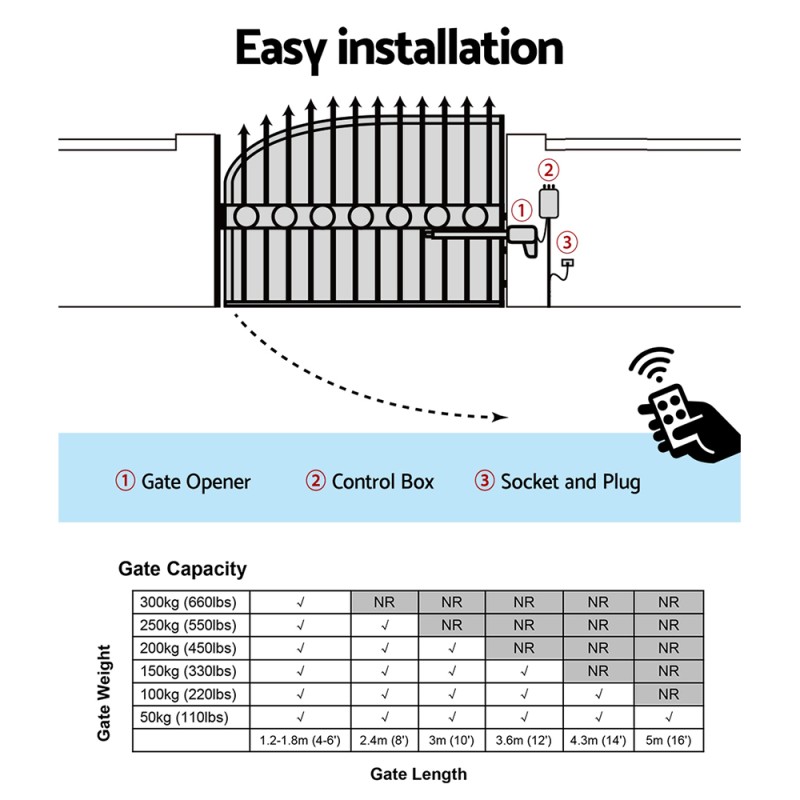

• Max. gate weight: 300kg
• Max gate length: 5m
• Actuator speed: 20mm/s

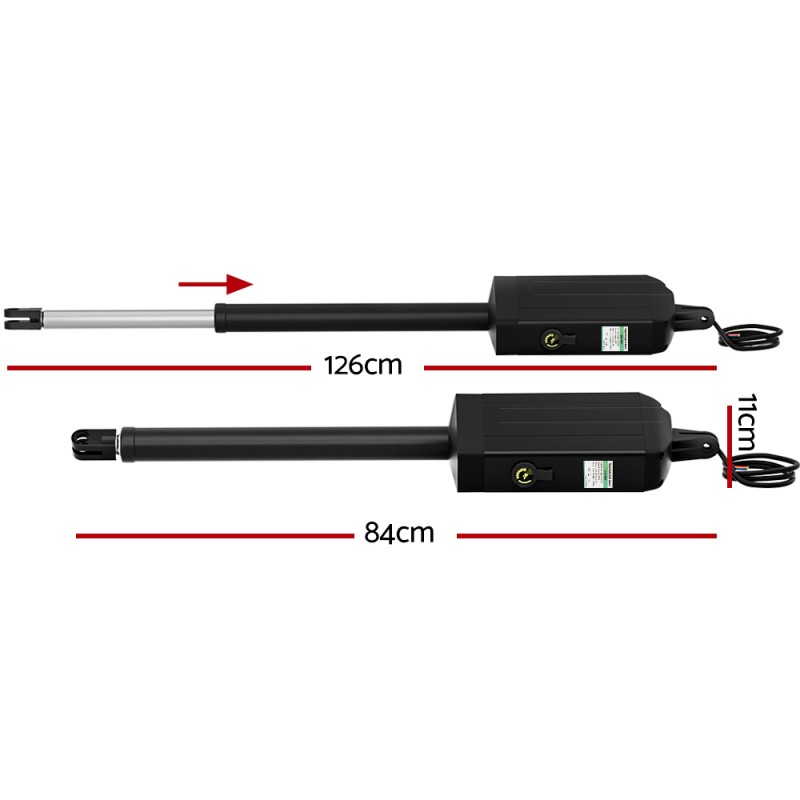

• Actuator travel: 385mm
• Operating temperature: -22°C~ +55°C
• Protection class: IP44
• Remote operating range: 30m
• Remote control battery: 12V 27A

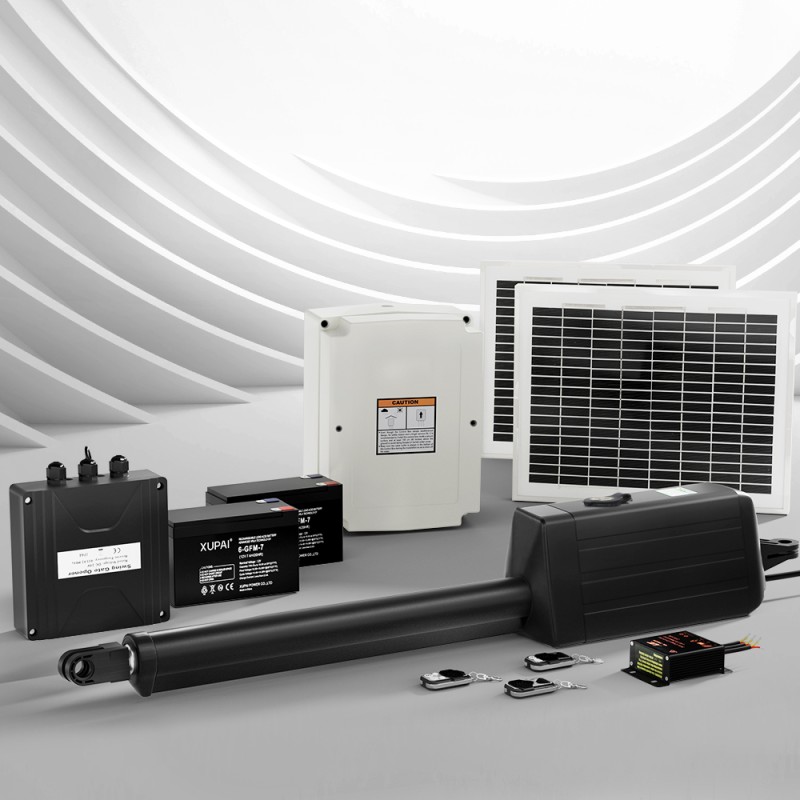

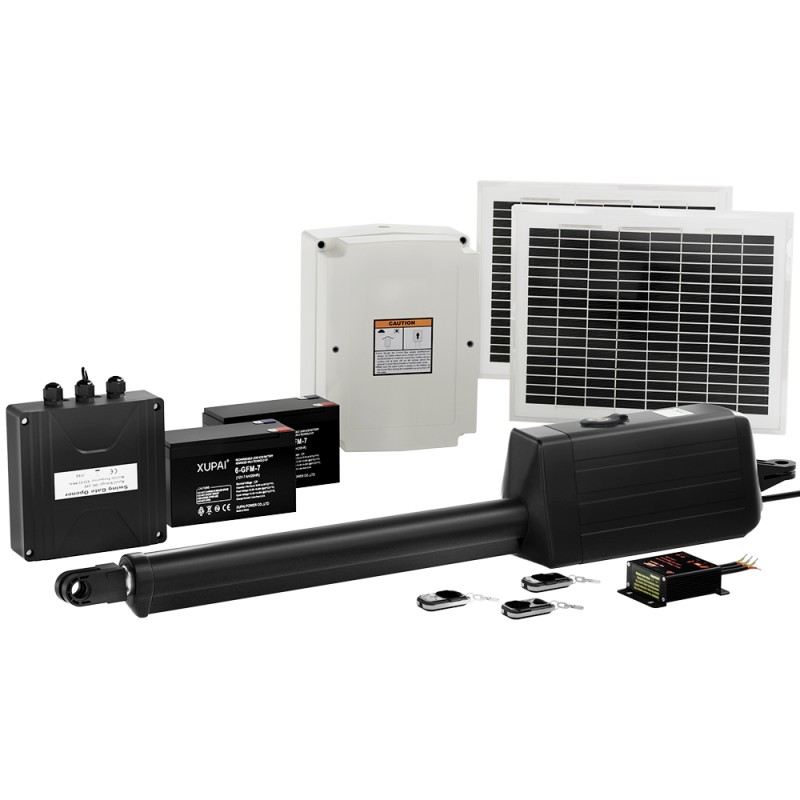

Package Contents

• Gate Opener
• Control Box
• 3 Remote Controls

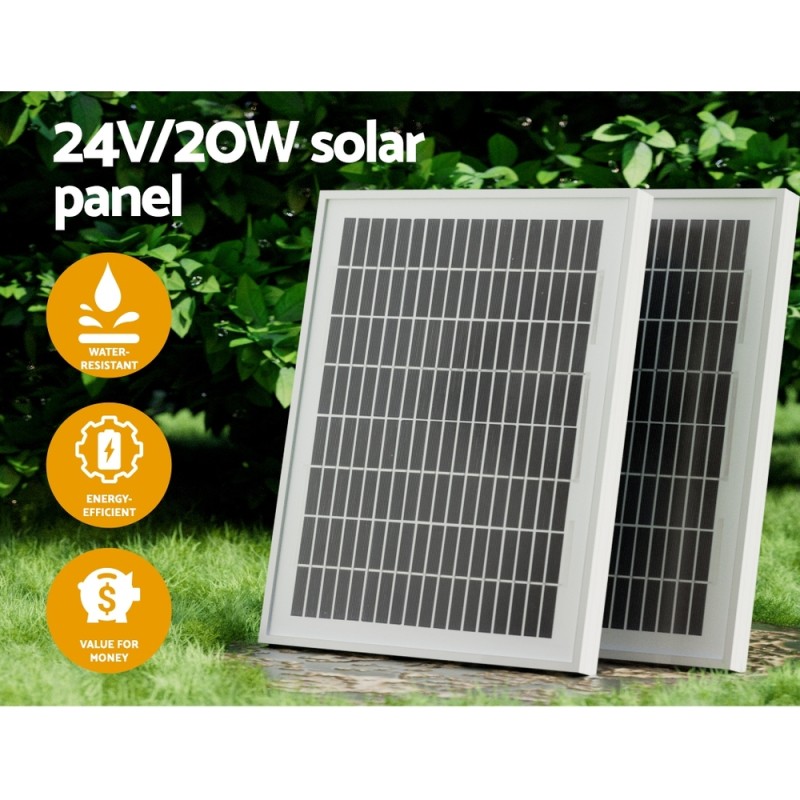

• 20W Solar Kit
• Installation Accessories set
• User Manual set

Product Notes

• Assembly required: Yes
• No. of packages: 2
• The actual colours may vary due to monitor colour depth and make.
