Devanti 6.5L Air Fryer AF-K-J-NA5ST-BK-SS Manual

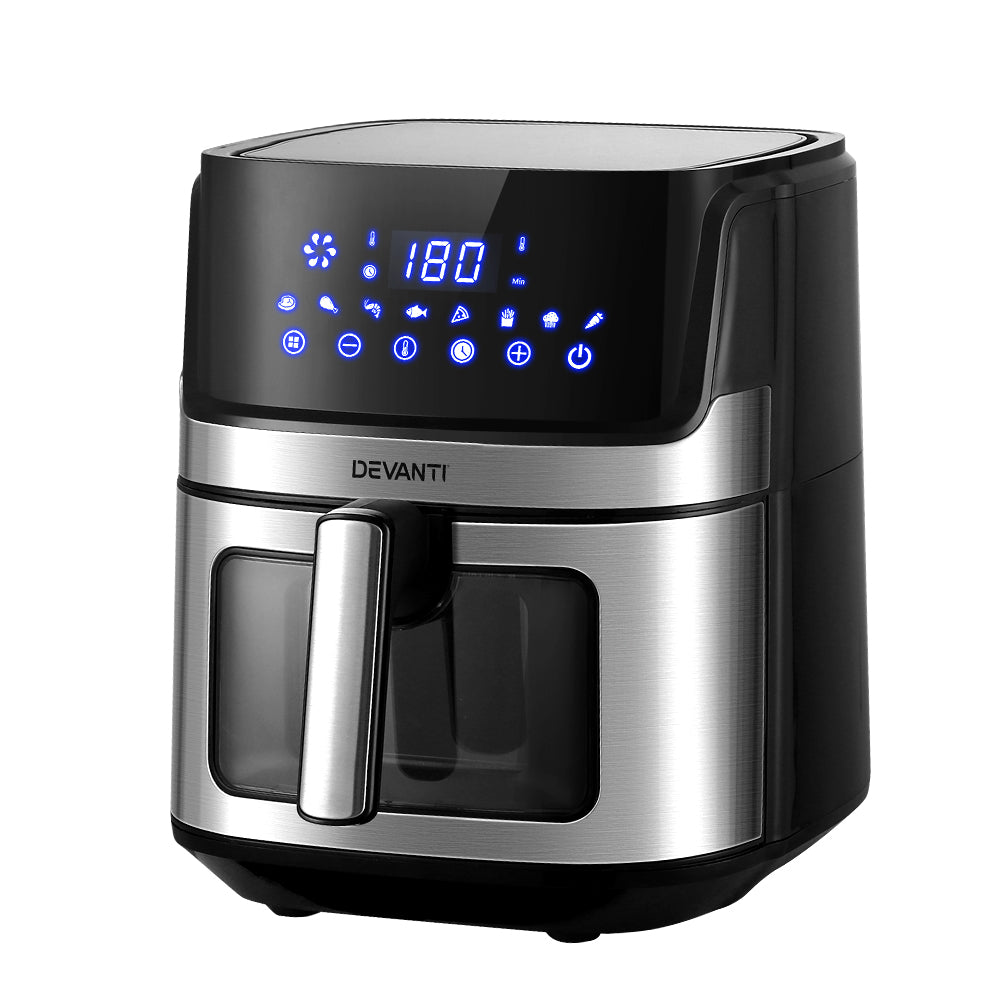

The Devanti AF-K-J-NA5ST-BK-SS is a 6.5L digital air fryer with an LCD panel and clear viewing window. This article turns the main information in the supplied manual into a quick setup and operating guide while keeping the original PDF available for full safety instructions.

View the Devanti 6.5L LCD Air Fryer with Clear Window | Download the original PDF manual

Key specifications

The manual specifies 220–240V at 50/60Hz, 1700W power, 6.5L capacity with the rack fitted, an 80–200°C temperature range and a 0–60 minute timer.

Setup before cooking

Wash the frying pot and rack, wipe the appliance body, and dry all parts. Set the air fryer on a stable, level, heat-resistant surface with unrestricted ventilation. Fit the rack in the pot and insert the pot fully.

Do not fill the pot with oil, do not cover the air openings, and do not place the appliance against a wall or other heat-sensitive object. Use an earthed wall socket and keep the cord away from hot surfaces.

Using the LCD controls

With the pot correctly inserted, hold the power control to wake the unit. The manual describes a default setting of 200°C for 15 minutes. Use the preset selector or set temperature and time manually, then start cooking.

The panel provides power, preset, temperature decrease and increase, and time decrease and increase controls. The display alternates or identifies the selected temperature and minutes. You can adjust the setting during cooking; the chosen value is retained briefly after the pot is removed.

Use the clear window to monitor progress without opening the pot unnecessarily. For food that needs turning, pull the pot out by the handle, shake or turn the ingredients, and return it to continue.

Preset starting points

• Pizza: approximately 20 minutes at 200°C.
• Frozen fries: approximately 17–20 minutes at 200°C; shake during cooking.
• Drumsticks: approximately 22–25 minutes at 180°C.
• Fish: approximately 16–18 minutes at 180°C.
• Shrimp: approximately 12–14 minutes at 180°C.
• Vegetables: approximately 7 minutes at 160°C.
• Steak: approximately 16–20 minutes at 180°C.
• Cake: approximately 17–19 minutes at 160°C.
• Egg tart: approximately 12–14 minutes at 170°C.
• The manual also suggests reheating at about 150°C for up to ten minutes. Treat every time as a guide and confirm doneness before serving.

Cleaning and care

Switch off, unplug and cool the appliance. Wipe the housing with a damp cloth. Clean the pot and rack using warm water, mild washing liquid and a soft sponge. Soak stubborn food residue before wiping rather than using abrasive cleaners or metal tools.

Keep water away from the electrical housing and heating components. Dry every part before reassembly. Store the appliance only when it is clean, cool and dry.

Troubleshooting

• Nothing happens: check the socket, power connection and whether the pot is fully inserted.
• Food is undercooked: reduce the batch, raise the temperature or extend the cooking time.
• Food cooks unevenly: shake or turn it during the cycle.
• Food lacks crispness: do not overcrowd; lightly coat suitable fresh ingredients with oil.
• The pot does not fit: check the rack position and remove food above the maximum level.
• White smoke: clean grease residue and take extra care when cooking naturally fatty foods.
