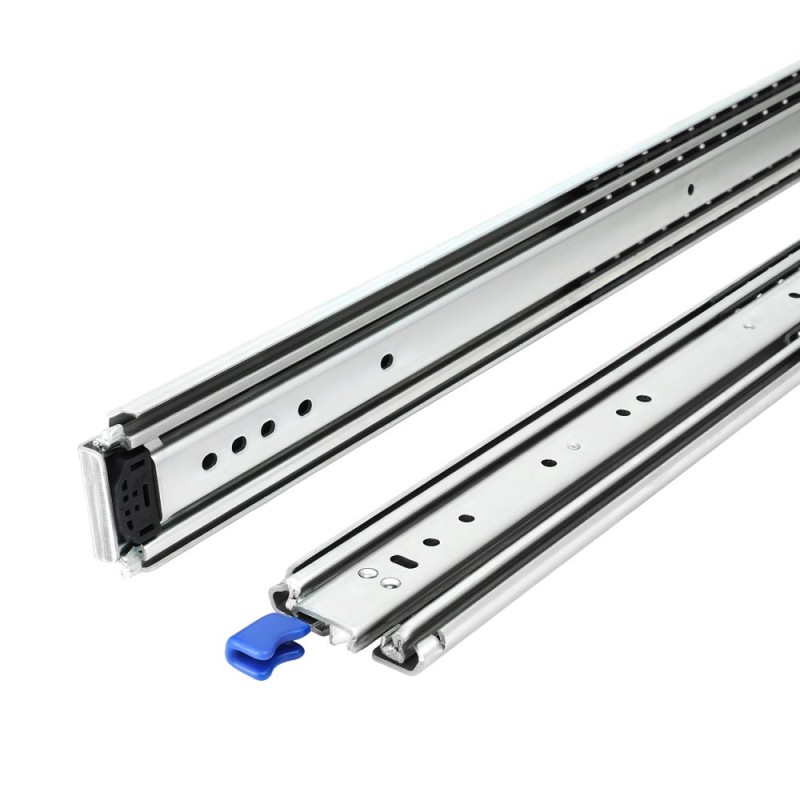

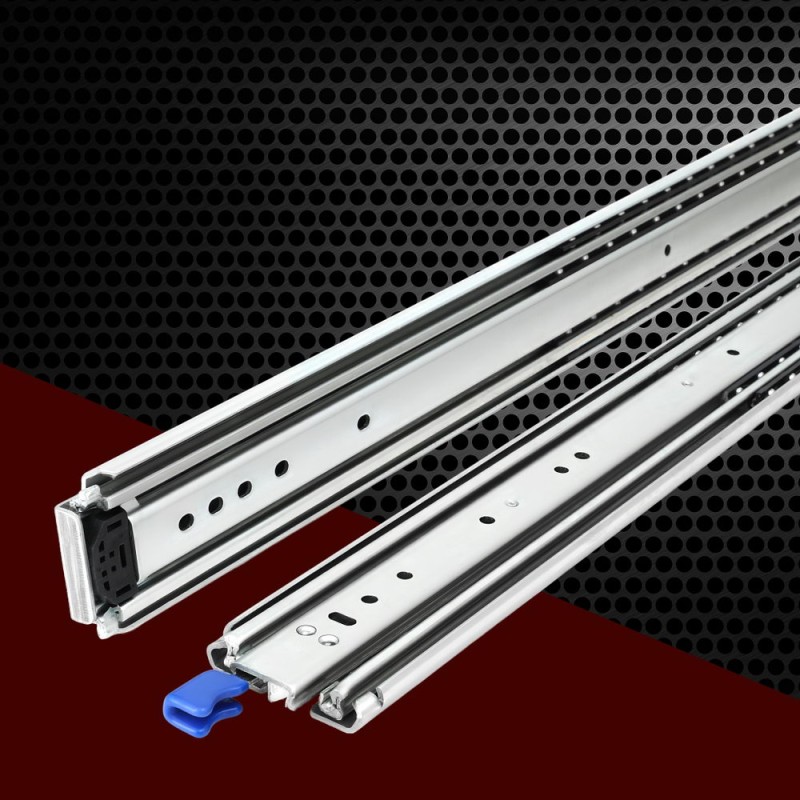

Upgrade your storage solutions with the Giantz Heavy Duty Drawer Slides. These slides boast a robust cold rolled steel construction with a corrosion-resistant zinc-plated finish, ensuring durability and longevity. With a full extension range from 1804mm to 3608mm and a remarkable 227kg load capacity, they offer unparalleled strength and smooth, noise-free operation thanks to their three-section ball bearing design. The secure lock-in and lock-out mechanism prevents accidental overextension, making them ideal for large drawers, industrial storage, vehicle fit-outs, and multimedia equipment. Each set includes two slides, 12 M5 screws, and 12 M5 screw nuts for easy installation.

Features

• Durable cold rolled steel build

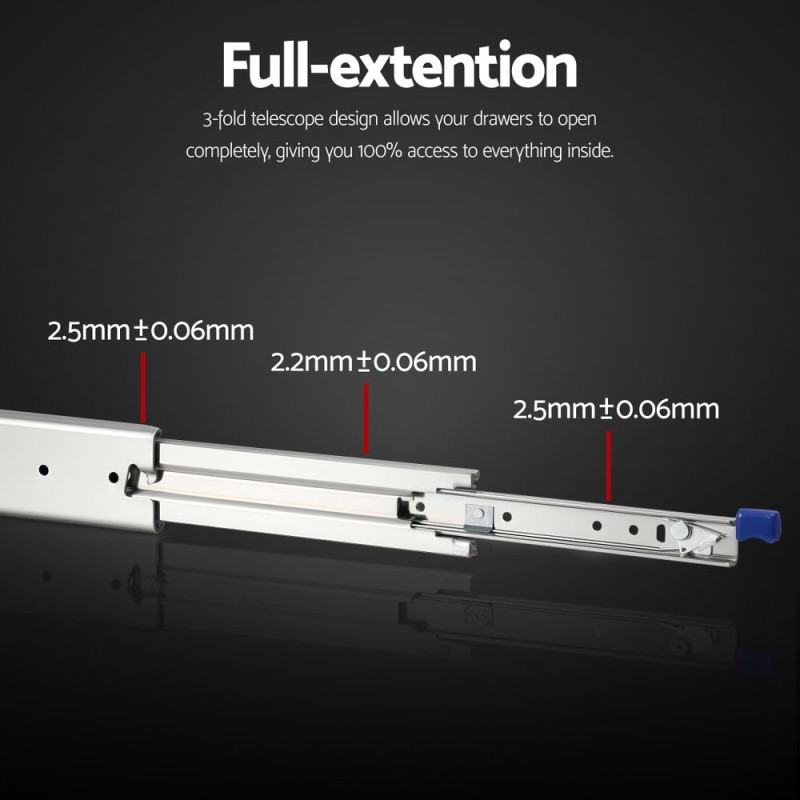

• Three-section drawer slides
• Heavy-duty 227kg load capacity

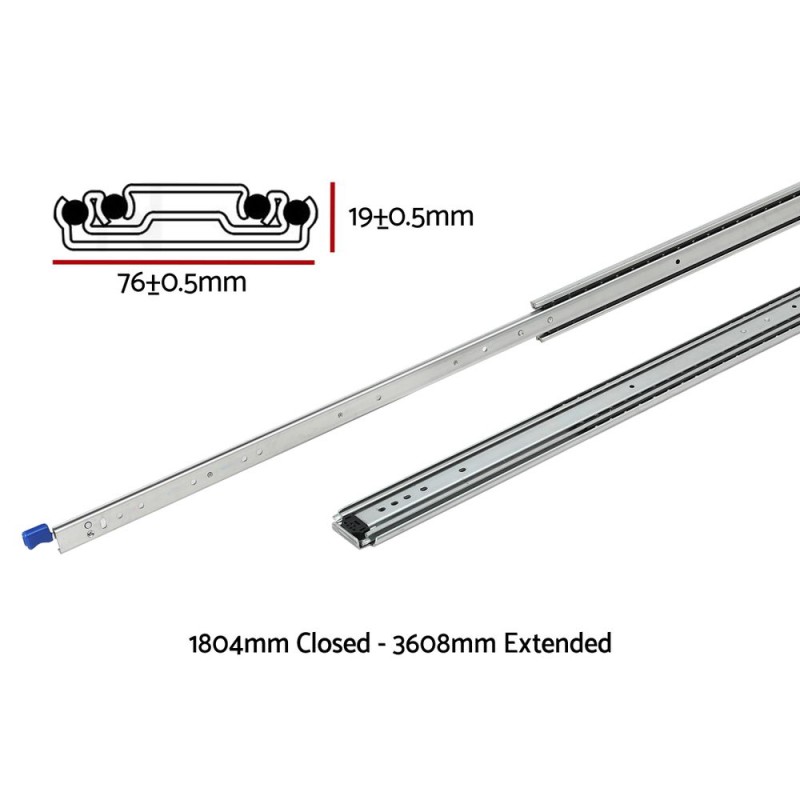

• Full extension range 1804mm to 3608mm

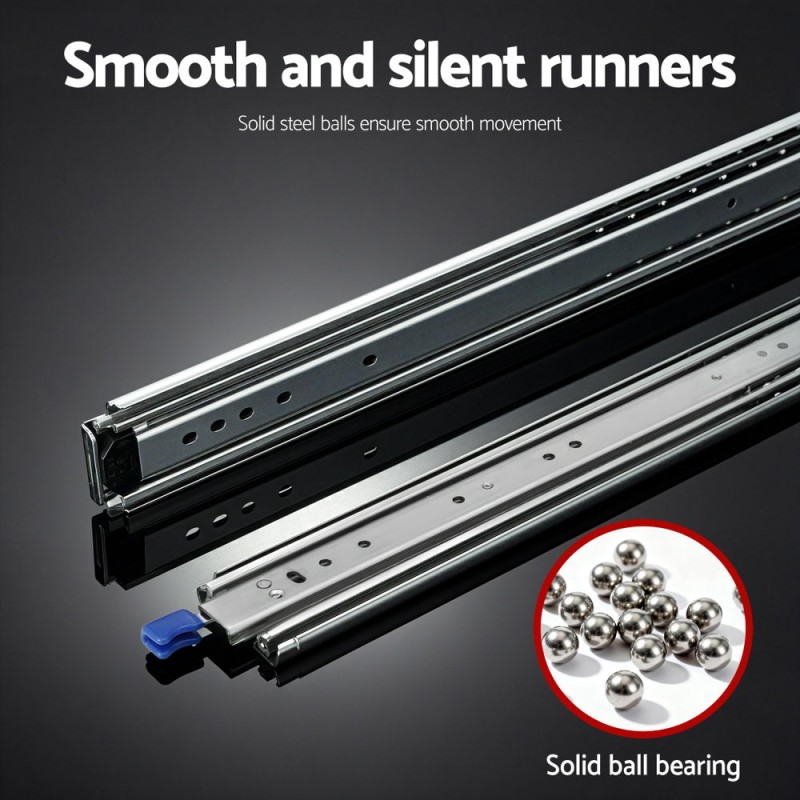

• Smooth push and pull without noise
• Extra wide 76mm steel rails

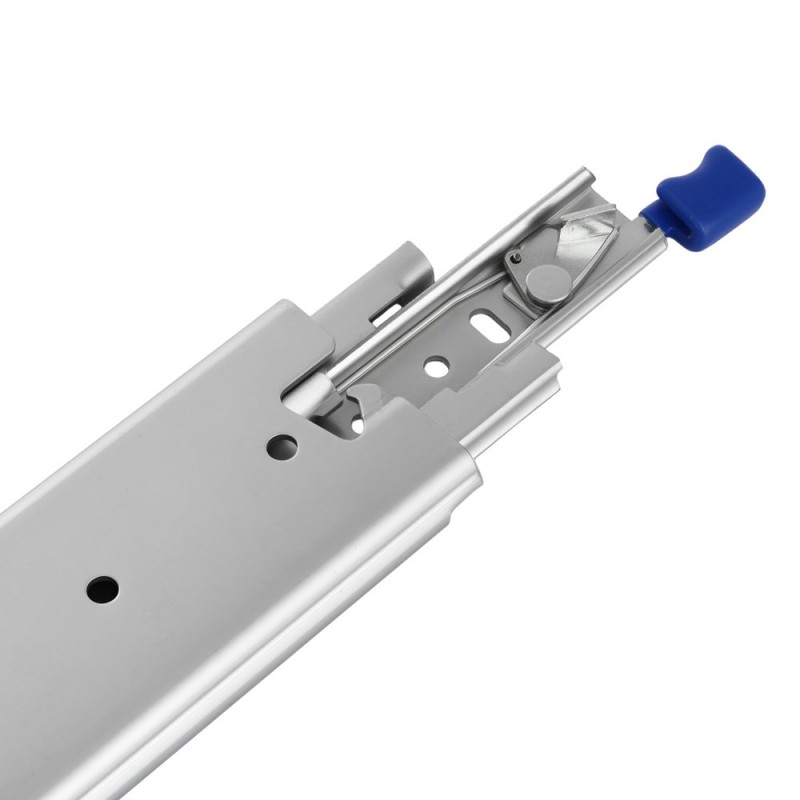

• Locking mechanism for secure hold

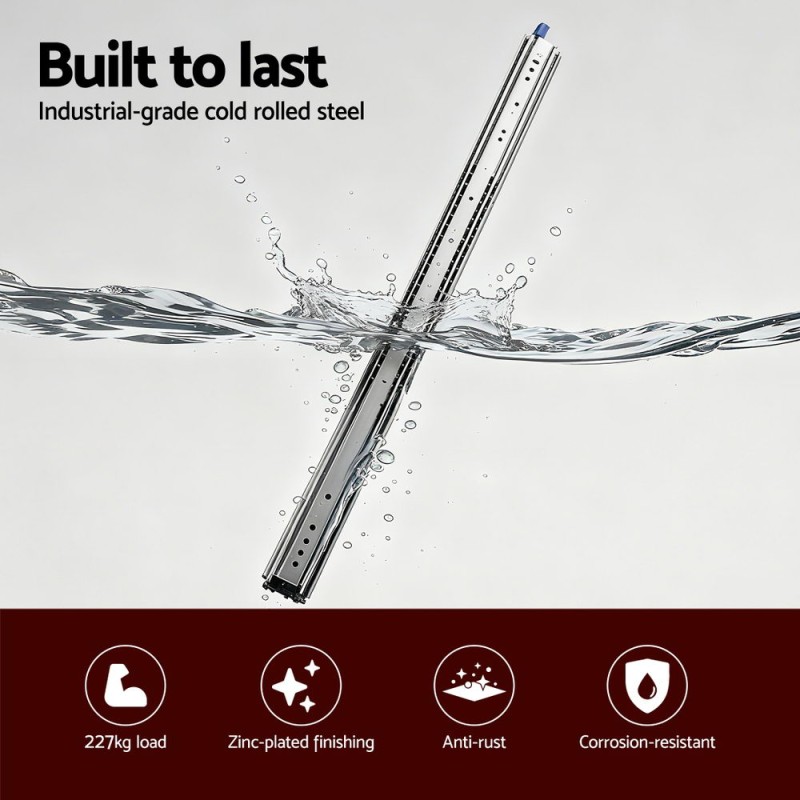

• Corrosion-resistant zinc plated finish
• Includes screws and bonus nuts
• Suitable for large cabinets, spacious drawers, RV, trunk, and multimedia installations

Specifications

• Colour: Silver
• Material: Cold Rolled Steel
• Finish: Zinc Plated
• Load Capacity: 227KG
• Fully Pull-Out Length: 3608mm
• Folded Product Size: 180.4 x 7.6 x 1.95 cm
• Slide Lock: Support

Package Contents

• Giantz drawer slide pair
• 2 M5 screw X1s
• 2 M5 screw nut X1s
• User Manual

Product Notes

• Assembly Required: No
• No. Of package: One
• The actual colours may vary due to monitor colour depth and make.
