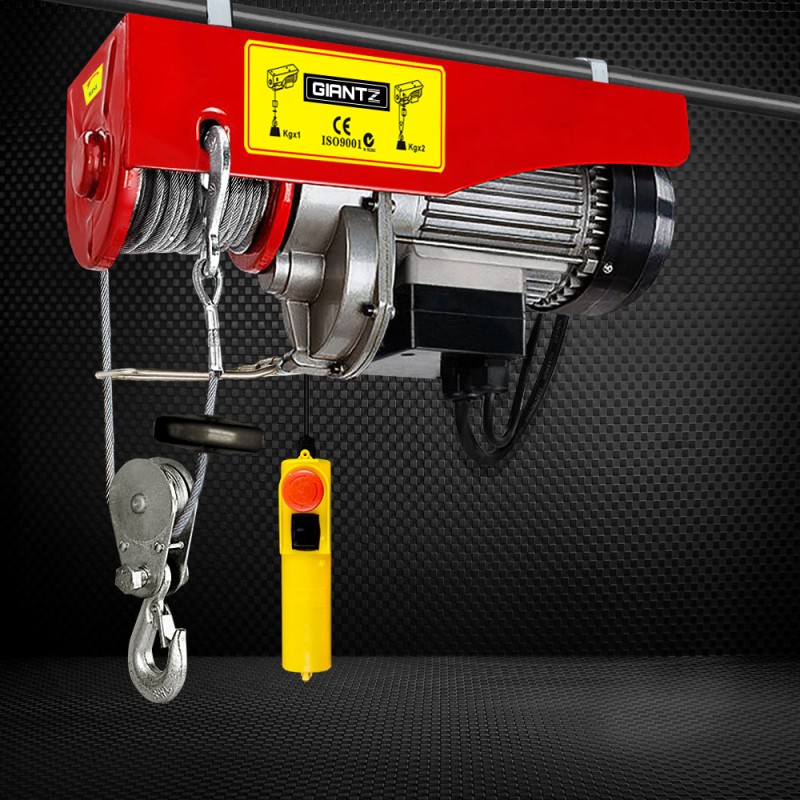

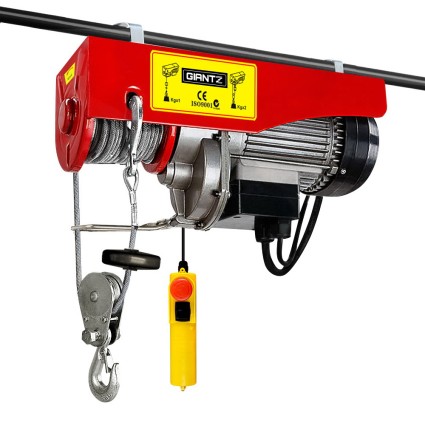

The Giantz Electric Hoist Winch is a powerhouse tool designed to make heavy lifting a breeze in your garage, warehouse, or on-site applications. With a robust 1300W lateral-magnetic single-phase capacitance motor, this hoist delivers impressive lifting capabilities. Choose between single rope for a hefty 400kg capacity or double rope for an astounding 800kg capacity. The 7x19 wire rope structure ensures durability, while the 18-metre high tensile cable provides excellent reach. Safety is paramount with features like an emergency instant stop switch and overload protection. CE/GS/RoHS/EMC approved for peace of mind.

Features

• Powered by Lateral-Magnetic Single-Phase Capacitance Motor
• Emergency Instant Stop Switch
• 7x19 Robust Wire Rope Structure

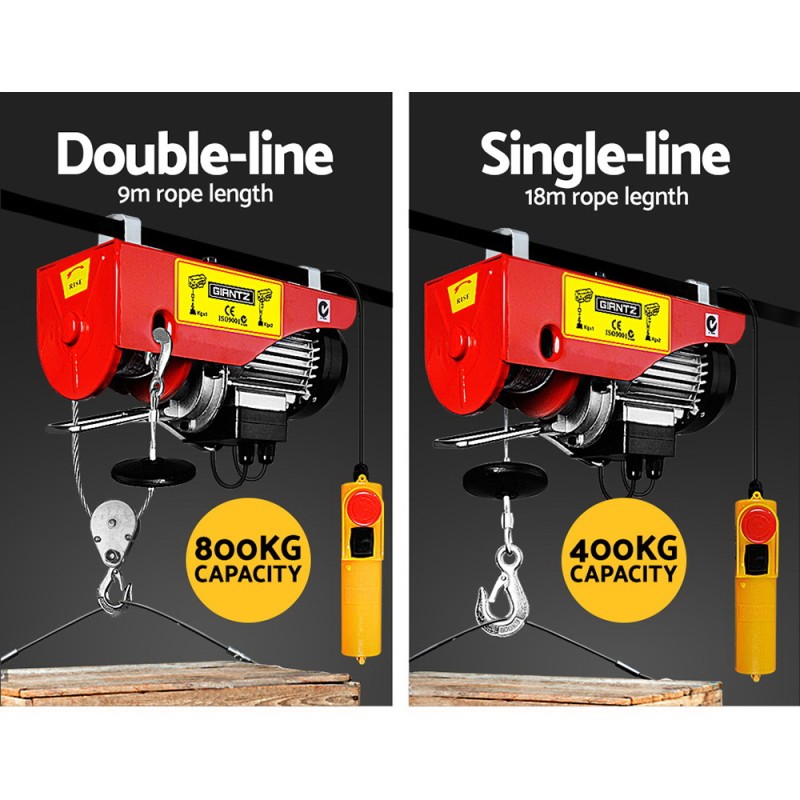

• Single and Double Rope Lifting
• Overload Protection Function
• 18 metres High Tensile Cable

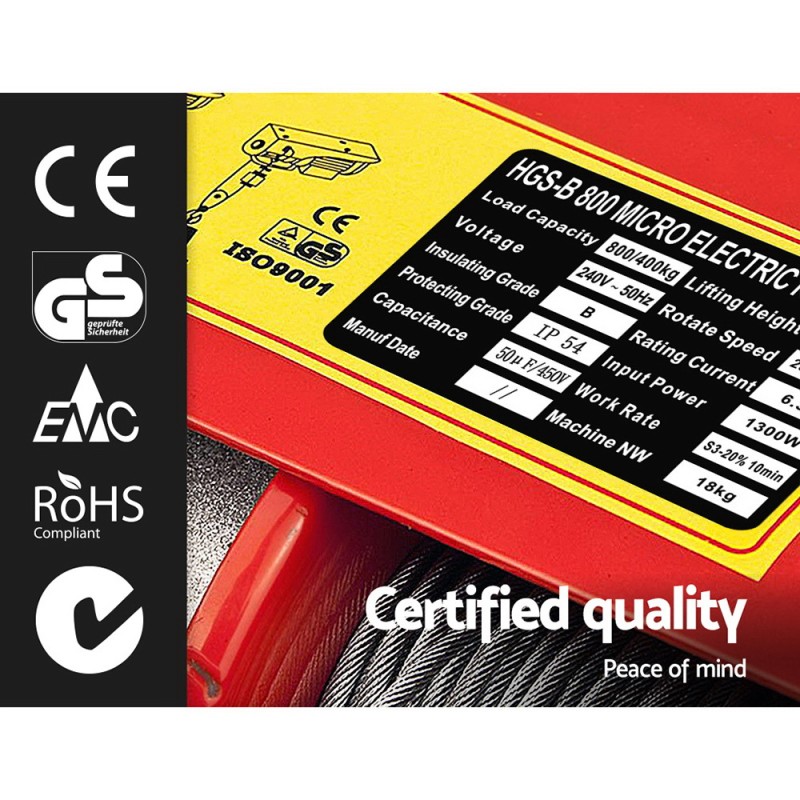

• CE/GS/RoHS/EMC Approval

Specifications

• Voltage: AC 240V/50Hz
• Input power: 1300W
• Single Rope Capacity: 400kg
• Double Rope Capacity: 800kg

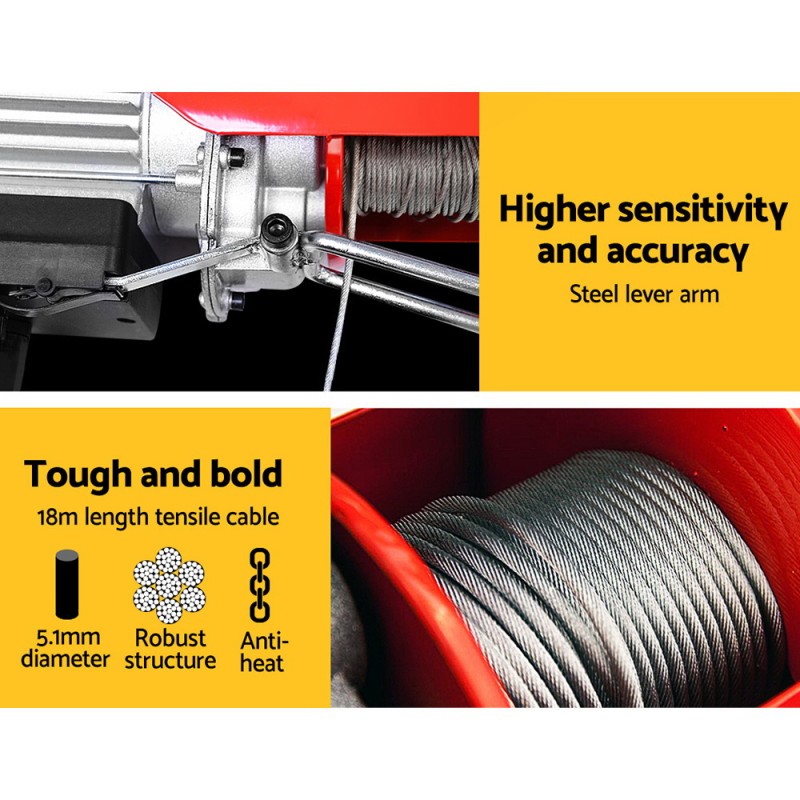

• Rope Type: 7x19 Structure Wire Rope
• Rope Diameter: 5.1mm
• Lifting speed: Single Rope 10 metres/min, Double Rope 5 metres/min
• Lifting height: Single Rope 18m, Double Rope 7.5m
• Weight: 18.5kg
• Length of power cable: 0.8m
• Length of control switch cable: 1.8m

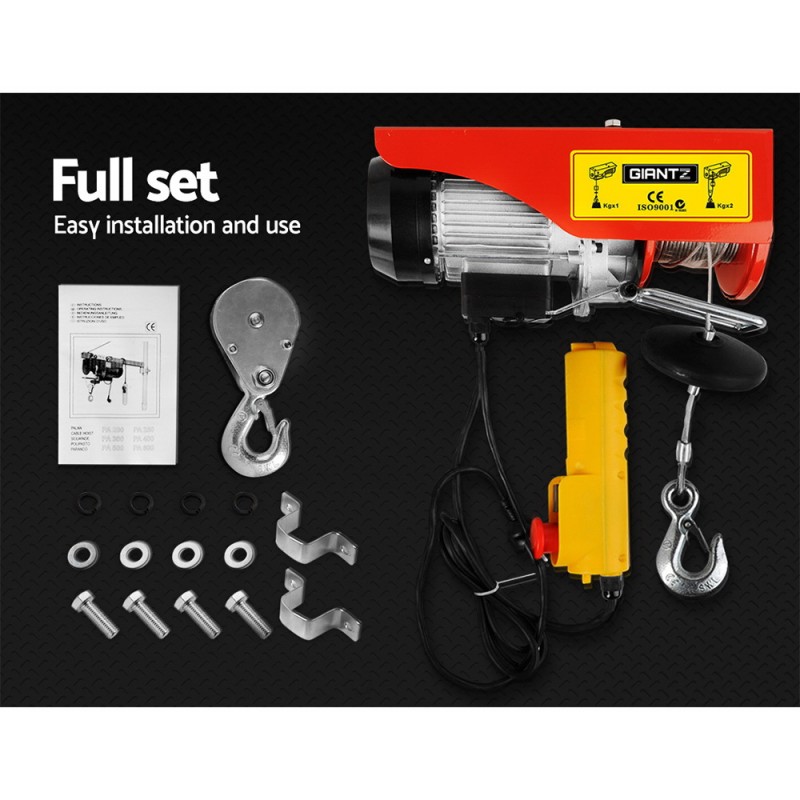

Package Contents

• Mach Electric Hoist
• User Manual

Product Notes

• 1-year warranty
• The actual colours may vary due to your monitor colour depth and make.
